Wall Model Sauna Heater Specifications
|
|
Heater Model
|
Size (kW)
|
Capacity
Min / Max
ft3 (m3)
|
Min Ceiling
Height
inches (mm)
|
Stone Capacity
lbs (kgs)
|
Voltage
|
Amps
|
Wire Size
|
|
Wall 6
|
6
|
177-204
(5-8)
|
75
(1900)
|
44
(20)
|
240
|
25
|
10
|
|
Wall 6
|
6
|
177-204
(5-8)
|
75
(1900)
|
44
(20)
|
208
3 Phase
|
16.7
|
12
|
|
Wall 8
|
8
|
177-431
(5-12)
|
75
(1900)
|
44
(20)
|
240
|
33.4
|
8
|
|
Wall 8
|
8
|
177-431
(5-12)
|
75
(1900)
|
44
(20)
|
208
3 Phase
|
22.2
|
10
|

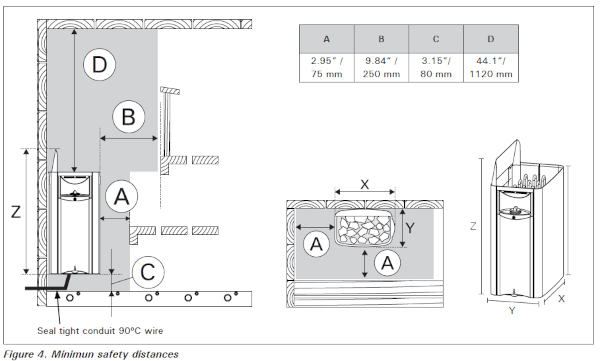

Wall Dimensions
17" Wide x 10.2" Deep x 27.6" High
(430mm Wide x 260mm Deep x 700mm High)
|
Virta Combi Model
The Virta Combi heater is a combined electric heater and steamer that provides different sauna pleasures. You can select between a traditional Finnish sauna, a steam sauna, a herbal sauna or a fragrant sauna.
A Combi heater is the correct choice for bathers who appreciate a soft and humid bath and an aromatic atmosphere. The water tank holds 5 litres according to model, the tank is filled either by manually pouring water into the tank or automatically from a water outlet. The heater has a soapstone cup to hold liquid fragrances and a stainless steel grate for bagged aromatic fragrances. The Combi system is simple and reliable.
The Virta Combi is also available without the integrated steam generator, and is then just called the Harvia Virta.
Click Here to view the installation and instruction manual for the Virta Combi
Click Here to view the installation and instruction manual for the Virta
Click Here to view our Sauna Heater pricing
|
|

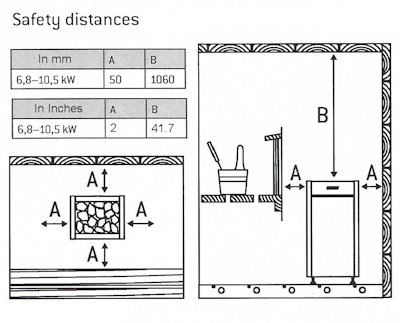

Virta Combi Model Sauna Heater Specifications
|
|
Heater Model
|
Size (kW)
|
Capacity
Min / Max
ft3 (m3)
|
Min Ceiling
Height
inches (mm)
|
Stone Capacity
lbs (kgs)
|
Voltage
|
Amps
|
Wire Size
|
|
Virta Combi 6
|
6 + 2.1
|
177-294
(5-8)
|
75
(1900)
|
110
(50)
|
240
|
33.75
|
8
|
|
Virta Combi 8
|
8 + 2.1
|
177-431
(5-12)
|
75
(1900)
|
110
(50)
|
240
|
42.8
|
6
|
|
Virta Combi 9
|
9 + 2.1
|
177-494
(5-14)
|
75
(1900)
|
110
(50)
|
240
|
46.25
|
6
|
|
Virta Combi 11
|
10.5 + 2.1
|
177-635
(5-18)
|
75
(1900)
|
154
(70)
|
240
|
52.5
|
6
|
|
Virta Combi 11
|
10.5 + 2.1
|
177-635
(5-18)
|
75
(1900)
|
154
(70)
|
208
3 Phase
|
52.5
|
6
|
6kW/8kW/9kW Dimensions
16" Wide x 16" Deep x 33" High
(415mm Wide x 410mm Deep x 840mm High)
11kW Dimensions
16" Wide x 19" Deep x 33" High
(415mm Wide x 485mm Deep x 840mm High)
The steam generator module draws 2.1kW
|
Virta Model Sauna Heater Specifications
|
|
Heater Model
|
Size (kW)
|
Capacity
Min / Max
ft3 (m3)
|
Min Ceiling
Height
inches (mm)
|
Stone Capacity
lbs (kgs)
|
Voltage
|
Amps
|
Wire Size
|
|
Virta 6
|
6
|
177-294
(5-8)
|
75
(1900)
|
110
(50)
|
240
|
25
|
10
|
|
Virta 8
|
8
|
177-431
(5-12)
|
75
(1900)
|
110
(50)
|
240
|
33.4
|
8
|
|
Virta 9
|
9
|
177-494
(5-14)
|
75
(1900)
|
110
(50)
|
240
|
37.5
|
8
|
|
Virta 11
|
10.5
|
177-635
(5-18)
|
75
(1900)
|
154
(70)
|
240
|
43.75
|
6
|
|
Virta 11
|
10.5
|
177-635
(5-18)
|
75
(1900)
|
154
(70)
|
208
3 Phase
|
29.2
|
8
|
6kW/8kW/9kW Dimensions
16" Wide x 13" Deep x 33" High
(415mm Wide x 340mm Deep x 840mm High)
11kW Dimensions
16" Wide x 16" Deep x 33" High
(415mm Wide x 410mm Deep x 840mm High)
|
|
Club Model
Club heaters from Harvia are designed to
serve as true super heaters capable of providing
heat for large numbers of users from morning till night.
Heaters used in large saunas or on a continuous basis
must be functional, efficient and comfortable to use. The
floor-mounted Club electric heaters are of the world-famous
Harvia quality. They are completely made of stainless
steel and provide the power and durability required
for heavy-duty use.
The Club heaters are excellent for health clubs, wellness
centres, hotels, holiday resorts, indoor swimming pools,
large family saunas and other facilities where saunas
are in frequent use.
The Club heaters are controlled by a separate control
unit. Club models K10G, K12,5G and K15G.
Click Here to view the installation and instruction manual
Click Here to view our Sauna Heater pricing
|

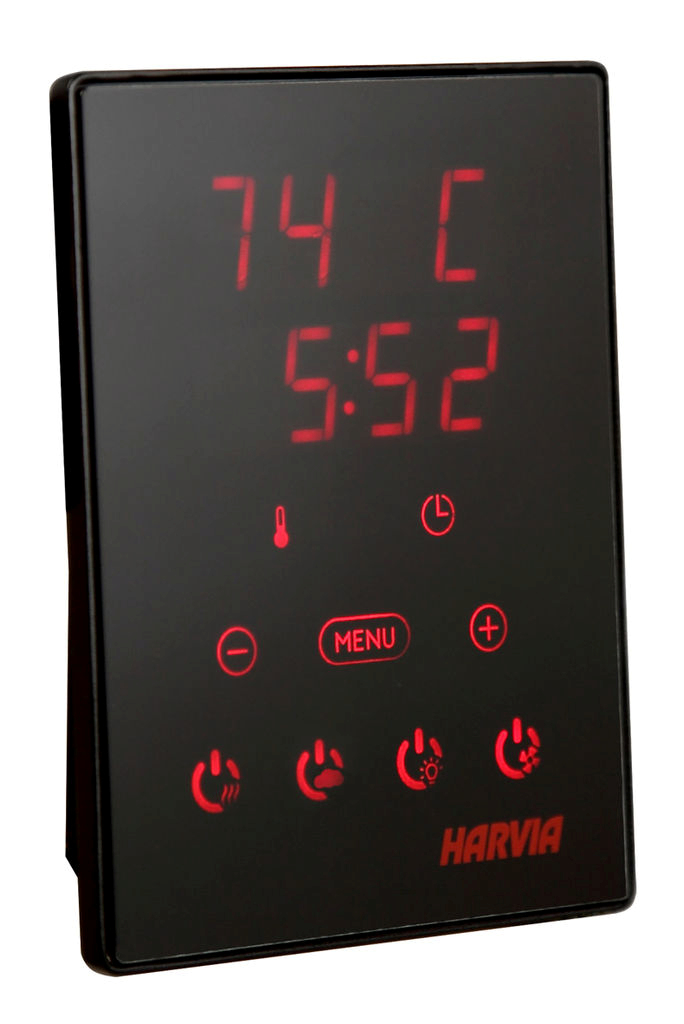

Digital Xenio control panel.
|

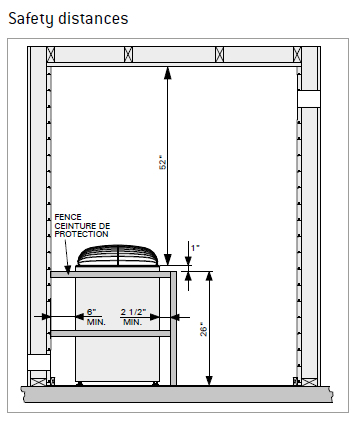

Club Heater Dimensions:
Width 19-15/16" (505 mm)
Depth 16-15/16" (430 mm)
Height 27-9/16" (700 mm)
The weight is 55.116 pounds (25 kg)
|
|
Club Model Sauna Heater Specifications
|
|
Heater Model
|
Size (kW)
|
Capacity
Min / Max
ft3 (m3)
|
Min Ceiling
Height
inches (mm)
|
Stone Capacity
lbs (kgs)
|
Voltage
|
Watts
|
Amps
|
Wire Size
|
|
K10G
|
10.0
|
388-600
(11-17)
|
78
(1980)
|
132
(60)
|
240
|
10,000
|
41.7
|
6
|
|
K10G
|
10.0
|
388-600
(11-17)
|
78
(1980)
|
132
(60)
|
208
|
9,800
|
27.3
|
10
|
|
K12.5G
|
12.5
|
494-741
(14-21)
|
78
(1980)
|
132
(60)
|
240
|
12,600
|
52.7
|
6
|
|
K12.5G
|
12.5
|
494-741
(14-21)
|
78
(1980)
|
132
(60)
|
208
|
12,300
|
34.1
|
8
|
|
K15G
|
15.0
|
600-988
(17-28)
|
78
(1980)
|
132
(60)
|
240
|
14,800
|
61.7
|
4
|
|
K15G
|
15.0
|
600-988
(17-28)
|
78
(1980)
|
132
(60)
|
208
|
14,400
|
40.0
|
6
|
|
|

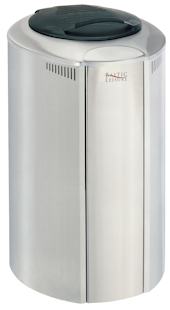

Forte Model
Harvia Forte is always ready for bathing without any pre-heating.
Open the heater cover, get on the bench, throw some water
on the hot stones and sit back to enjoy. Forte guarantees that you can
have a humid and soft bath immediately when you want. The sauna
temperature will rise if you let the heater operate at maximum power
for a while with the cover opened.
The heater design emphasises ease of use in addition to short heating
times. Harvia Forte heater is equipped with a separate digital control
panel, which makes heater use extremely easy. Control panel can be
located in or outside the sauna with a data cable.
Forte is an economic heater of durable Harvia quality. The entire stone
space is made of stainless steel. The efficient thermal insulation enables
the heater to maintain its bathing temperature, more than 300 degrees Celsius,
using a modest 250 watts of electrical power. In between baths, the
heater works as a normal radiator in the sauna. The heater�s properties
are the best in saunas with good thermal insulation and no massive
materials (such as concrete, log or glass blocks). Only large, split-face
sauna stones (over 10 cm in diameter) must be used in all electric
storage heaters.
Forte is the right choice for families who use the sauna several times a
week but not necessarily at fixed times. Forte models AF-45, AF-65 and AF-100.
Click Here to view the installation and instruction manual
Click Here to view our Sauna Heater pricing
|

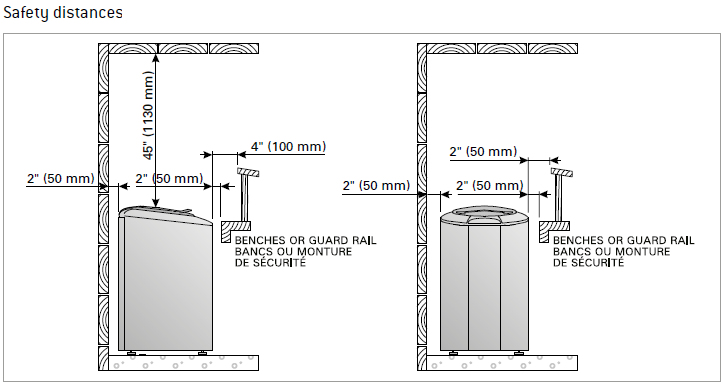

Forte Heater Dimensions:
Width 19-11/16" (500 mm)
Depth 20-7/8" (530 mm)
Height 34-11/16" (880 mm)
The weight is 66.139 pounds (30 kg)
|
|
Forte Model Sauna Heater Specifications
|
|
Heater Model
|
Size (kW)
|
Capacity
Min / Max
ft3 (m3)
|
Min Ceiling
Height
inches (mm)
|
Stone Capacity
lbs (kgs)
|
Voltage
|
Amps
|
Wire Size
|
|
AF-45
|
4.4
|
176-282
(5-8)
|
80
(2010)
|
220
(100)
|
240
|
18.3
|
12
|
|
AF-65
|
6.5
|
247-423
(7-12)
|
80
(2010)
|
220
(100)
|
240
|
27.0
|
8
|
|
AF-100
|
9.8
|
353-529
(10-15)
|
80
(2010)
|
220
(100)
|
240
|
40.8
|
6
|
|
Available Control Units
|
Model M3 Wood Burning Stove
Harvia's M3 has a classic design and is suitable for smaller, wood-heated saunas. It turns a sauna bath into a pleasurable experience, and adds a touch of traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.
The M3 comes equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The stove is graphite black with a stainless steel air-flow spoiler. It can also be equipped with a pipe model water heater. The shield pictured to the right is available to reduce the required safety clearances to combustible materials.
The recommended size of the sauna room is 160 to 460 ft3 (4.5-13 m3), and the maximum amount of stones is 66 lbs (30 kg).
Click Here to view the installation and instruction manual
Click Here to view our Sauna Heater pricing
|
|
|
|
|
|
Legend Models of Wood Burning Stove
The Harvia Legend woodburning stoves give you the ultimate sauna experience. The black steel frame has a mighty amount of stones inside, and as they heat up, you get a magnificent sauna bath even at a lower temperature. The large number of stones ensures good heat, even if the fire dies down in between.
The fire chamber of Legend stoves has a modern grate structure that separates the combustion air. Part of the air is directed to the upper part of the fire chamber. This way the burning is cleaner and more efficient. This grate structure also gives the stove a longer lifespan. The smaller than usual safety distances from the side and back surfaces to burning materials enable you to locate the benches more freely. The Legend stoves can be equipped with a pipe-mounted water heater.
The Legend comes in two models, 150 and 240.
Recommended size of the sauna room for the Legend 150 is 212 to 460 ft3 (6-13 m3), and the maximum amount of stones is 265 lbs (120 kg). Recommended size of the sauna room for the Legend 240 is 352 to 848 ft3 (10-24 m3), and the maximum amount of stones is 440 lbs (200 kg).
Click Here to view the installation and instruction manual
Click Here to view our Sauna Heater pricing
|
|
|
|
|

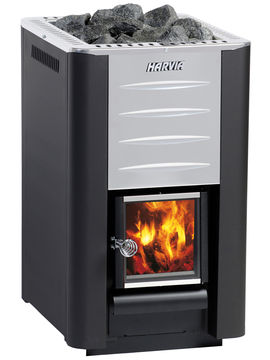

20 Pro Wood Burning Stove
Harvia 20 Pro gives a good hot bath in medium-sized saunas. It has a big stone space and an air-flow spoiler made of stainless steel. Through the cast-iron glass door the warm glow of the fire adds to the sauna atmosphere. The sturdy 10 mm fire space cover ensure durability. This model also features adjustable legs to facilitate installation and, for example, help in adjusting the height of the smoke outlet, and it can be equipped with a pipe mounted water heater. The outer casing of the stove is painted graphite black.
The recommended size of the sauna room is 282-706 ft3 (8-20 m3) and the maximum amount of stones is 88 lbs (40 kg).
Click Here to view the installation and instruction manual
Click Here to view our Sauna Heater pricing
|
|
|
Wood Burning Stove Accessories
|
|
Protective Bedding
The Harvia WL100 protective bedding is used when a fireplace or stove is installed onto a waterproofed tile or hardwood floor. Made of aluminum-zinc coated steel, painted black.
Click Here to view our Sauna Heater pricing
|
|
|
Chimney Kit for Barrels or Flat Roofs
The Harvia WHP1000500-PKG is everything you need for your sauna room chimney, including the chimney! This kit includes Harvia WHP1000500 stainless steel chimney and Harvia WHPASSYM which is the assembly kit to put it all together.
Click Here to view our Sauna Heater pricing
|
|
|
Barrel Ceiling Frame
The SaunaLife Barrel Ceiling Frame is engineered for use when installing Harvia wood-burning sauna stoves in a sauna barrel. This frame will accommodate the Harvia Chimney Kit ceiling plate and creates a space for insulation surrounding the chimney.
Constructed from thermally enhanced spruce for durability, dimensional stability, and long life.
Click Here to view our Sauna Heater pricing
|
|
|
