Supplying leisure products to the public at wholesale prices for over three decades!

MS Series Residential Steam Generators

Wholesale to the public!
We will not be undersold!

We Ship these American Made products Worldwide!

FREE SHIPPING to any address in the lower 48 states!

Residential Steam Generators for any type or
size of enclosure available with a wide
variety of control options.

MS Series unit shown w/
Optional Autoflush

Features include:

Unitized stainless steel reservoir

Industrial, large diameter, serviceable heating element

Modular "snap-in" connections

Electronic water-level control system

Full-port drain valve

Limited lifetime steam generator parts warranty

Built-in, low-voltage 24-volt control

60-minute electronic countdown with 75-minute limiting safety back-up

ASME safety valve

AromaSteam Steamhead

The AromaSteam™ steamhead allows for a quieter, calming steambath. Just add eucalyptus or any of our AromaSteam oils for an unequaled aromatherapy experience. The unique design balances the distribution of steam and essence during steambathing, and is available in designer finishes, as well as square and round styles, to match control selection. A Lifetime of Pleasure® is yours to enjoy.

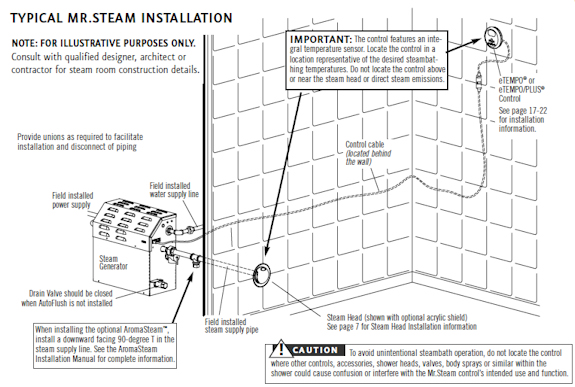

MS Series Installation,
Operation & Maintenance Manual
PDF Format (2,831 Kb)

Smaller MS Series Residential Steam Generators and control sets are sold separately, to afford you the widest possible number of choices.
iTempo^® Control An advanced electronic in-shower control for MrSteam® brand MS90E - MS400E Steam Generators that allows users to achieve ideal personal temperature settings. Specially designed for operation inside your steamroom.
Not for use with Models MS SUPER 1E-6E	iTempo^® Control features include: Programmable time & temperature Flush mounted in-shower control Digital display Includes iTempo steamhead with matching finish Operates with optional wireless iGenie™ control Soft touch keypad with On/Off modes Compatible with MS90E-MS400E models only	Not for use with Models MS SUPER 1E-6E
Available in Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Brushed Bronze, Oil Rubbed Bronze, and Raw. Installation and Operation Manual \| Technical Specifications

iTempo Plus^® Control An advanced in-shower control that allows users to achieve ideal personal temperature settings with more programmability than the more economical iTempo^® Control. Available for MS90E - MS400E steambath units and included as standard on the MS Super models.
	iTempo/Plus^® Control features include: Solid brass decorative cover with choice of square or round styles in designer finishes Flush mounted in-shower control Digital display Programmable time & temperature Stores two preferred user settings ChromaSteam™ & AromaSteam™ activation at your fingertips Standard with real time clock display Includes iTempo steamhead in matching finish Operates with optional wireless iGenie™ control State-of-the-Art microprocessor for consistent temperature mapping Ergonomic easy-to-read, soft-touch keypad Suitable for all Mr. Steam steambath models
Available in Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Brushed Bronze, Oil Rubbed Bronze, and Raw. Installation and Operation Manual \| Technical Specifications

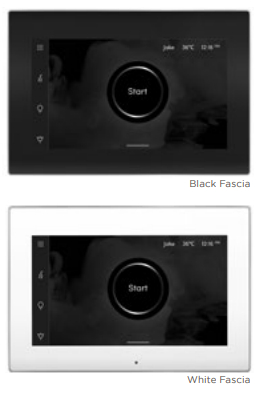

iSteam^® Touch Control With a swipe of the finger, the iSteam’s intuitive touch screen navigation allows the user to seamlessly control temperature, time, aroma, chroma, audio entertainment, and overall steam system functionality. iSteam’s accessory commands include optional chromatic lighting and aromatic infusers to transform your shower into a sensory spa.
	iSteam^® Touch Control features include: Auto-Fading Display with screen dimming technology Individual user preference settings With an optional Bluetooth® Audio Streaming System,you can pair up to 8 devices & 4 speakers Real time clock display Employs an exclusive three tier safety system with pass code protection, temperature limit and time-out features built to ISO-9001 certification. Designed and manufactured with high quality fused silica glass and polished cast aluminum Moisture Protection Rating of IP-67 Ingress and is capable of full water immersion of up to three feet.
Available in White or Black. Installation and Operation Manual

iSteam Genie^TM
Start up your steamroom from anywhere in the home. Mr. Steam's innovative iSteam Genie activates your steam generator and pre-heats the steam shower remotely, at the touch of a finger.
Installation and Operation Manual | Technical Specifications


	Optional AutoFlush Automatically and electronically drains generator after each use for "Clean Steam... Every time^®". Introduces fresh water prior to using your Mr. Steam^®. Improves performance, lengthens system life, simple plug-and-play connection, quiet operation. cULus Listed. Technical Specifications
For Models MS90E-MS SUPER 3E, specify one (1) Autoflush system. For Models MS SUPER 4E-6E, specify two (2) Autoflush systems, one for each steambath generator.

Optional Acrylic Shield Diffuses the steam for a more gentle and consistent effect. Necessary when acrylic or other nonheat resistant materials are used for the steamroom enclosure. Installation and Operation Manual \| Technical Specifications

	Optional Wall Mount Seat Teak wood, seat drops for use, folds for storage Dimensions 19.75" x 13.25" x 1.25" Max 250 lbs. rated. Polished Chrome Brackets standard. Optional Brushed Nickel and Oil Rubbed Bronze available. Installation and Operation Manual installation manual for the Wall Mount Seat (110 Kb).

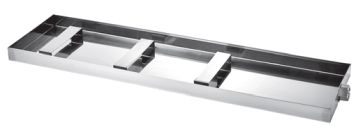

Optional Drain Pan with Plug May be required by building code measures 28" x 11" fits all models

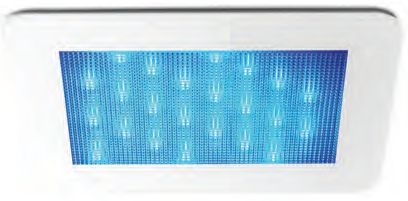

	Optional Chromasteam^TM System Create environments rich with color, mood and warmth ranging from airy blue to sensual reds. Ceiling mounted, vapor-sealed, low voltage LED light module for steam/shower enclosure. Chromasteam system is complete with LED light and color selection microprocessor. UL Listed. Installation and Operation Manual NOTE: For mood lighting only. Chromasteam^TM System is not a substitute for general illumination. Consultation with architect, designer and/or contractor on room design and construction is stronly recommended. For residential installations only.

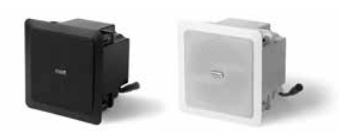

Optional Steam Speakers Two 5.5" diameter in-shower, flush-mount two-way speakers, polypropylene cones, ABS frames, full range sound, with grills. Suitable for almost any source of audio input. Rated 70 W peak power. Click here for the installation manual for the Round Steam Speakers, click here for the installation manual for the Square Steam Speakers.

	Audio Wizard AudioWizard Sound System for use in any shower. Equipped with Bluetooth wireless technology that can be simply paired with up to eight audio devices. Compatible with most Bluetooth equipped smart phones and devices. Output for up to 4 speakers. Operate using in-shower steam control or stand alone remote. Installation and Operation Manual

Optional MS Light Robust, surface mount architectural light. Aluminum body finished in brushed chrome. cULus wet-locations listed with a flourescent compact bulb. Energy Star rated, ADA 8.5" diameter x 4" height Installation and Operation Manual

	Optional Remote Temperature Sensor Required only when the iTempo^® or iTempo/Plus^® is to be installed outside the steamroom. Installation and Operation Manual

Optional Aromasteam^® System Electronic oil delivery system evenly infuses aroma into steam for a seamless integration of aromatherapy into the steambath. Complete with in-shower control switch, oil container caddy, hoses, fittings and oil atomizer. Oils are available in five fragrances, in one-liter bottles. Not for use with acrylic or fiberglass rooms. UL Listed. Price does not include aroma oil. Installation and Operation Manual

	Home Wizard Home Wizard automates the steambath by allowing easy connection to home automation systems including connection from your cell phone, iPad, computer, or your home's automation control pad. It's a simple invisible connection to the home automation system, and can also be used as a Steam Genie. Installation and Operation Manual \| Technical Specifications

MS Series Model Wholesale Pricing and Specifications (Units are listed below without controls - Select choice of controls from next section.)
Model No.	Total Adj. ** Room Vol.(Cu.Ft.)	kW Rating	Volts *	Amps	Price	Quantity
MS90E Technical Specifications	100	5.0	240	21	$1162.00
MS150E Technical Specifications	150	6.0	240	25	$1462.00
MS225E Technical Specifications	225	7.5	240	32	$1575.00
MS400E Technical Specifications	360	9.0	240	38	$1762.00
MS Super-1E Chrome Finish Technical Specifications	475	10.0	240	42	$2025.00
MS Super-2E Chrome Finish Technical Specifications	575	12.0	240	50	$2175.00
MS Super-3E Chrome Finish Technical Specifications	675	15.0	240	63	$2325.00
MS Super-4E Chrome Finish Technical Specifications	875	20.0	240	84	$4125.00
MS Super-5E Chrome Finish Technical Specifications	1075	24.0	240	100	$4425.00
MS Super-6E Chrome Finish Technical Specifications	1275	30.0	240	126	$4725.00
* All units are also available in a variety of other voltages Add 15% to capacity for each wall that's exterior to the outside. Add 15% to capacity for each wall that's tile over concrete or concrete block. Add 15% to capacity for each wall (other than door) that's glass. Double capacity for steamroom enclosures made entirely of natural marble, stone, slate, glass block, or concrete.

Control Set Wholesale Pricing (Select choice of controls for any of the units listed above.) MS Super 1E-6E must use either the iTempo/Plus or the iSteam touch control Designer finishes include Polished Brass, Polished Nickel, Brushed Nickel, Brushed Bronze, Oil Rubbed Bronze, and Raw
iTempo^® Control Set, square or round, with Chrome finish Aromahead (Not compatible with MS Super 1E-6E)			$375.00
iTempo^® Control Set, square or round, with Designer finish Aromahead (Not compatible with MS Super 1E-6E)			$450.00
iTempo/Plus^® Control Set, square or round, with Chrome finish Aromahead			$675.00
iTempo/Plus^® Control Set, square or round, with Designer finish Aromahead			$750.00
iSteam^® Touch Control, in White or Black with matching steamhead			$900.00

Optional Accessories (Select any below for any of the units listed above.)
Autoflush (for use with all models - MS Super 4,5,6 require two)			$300.00
Drain Pan with Plug for all Models (may be required by your local building code)			$90.00
iSteam Genie (wireless remote start control) in black or white			$337.00
Home Wizard (to connect steambath to home automation system)			$450.00
MS Light (available in brushed chrome or oil rubbed bronze)			$506.00
Steamroom Speakers (Pair)			$187.00
Audio Wizard - For use as standalone or with iTempo and iTempo Plus Controls			$975.00
Chromasteam System			$675.00
Teakwood Wall Mount Seat (Chrome Finish)			$375.00
Teakwood Wall Mount Seat (Oil Rubbed Bronze or Brushed Nickel Finish)			$412.00
Aromasteam System (see below for oils sold separately)			$937.00
Aromasteam^TM Oils - 1 liter (33 oz.) bottle designed to fit the Aromasteam^TM System and available in Eucalyptus, Lavender, Evergreen, Energizing Mint and Breathe			$75.00
Mr. Steam^® Essential Oils (10ml bottle with integral dropper for use with Mr. Steam^® Aromasteam^TM steamhead in Eucalyptus, Lavender, Evergreen, Energizing Mint or Breathe)			$22.00
5-pack Essential Oils (1 Eucalyptus, 1 Lavender, 1 Evergreen, 1 Energizing Mint, 1 Breathe)			$93.00
Chakra Blend Essential Oils (10ml bottle with integral dropper for use with Mr. Steam^® Aromasteam^TM steamhead. Specially formulated to support the body's specific needs in Red Vitality, Invigorating Orange, Yellow Awakening, Green Harmony, Celestial Blue, Mystic Indigo, or Violet Nirvana)			$26.00
Chakra Blend Essential Oils 7-Pack			$131.00
Express Steam - for all MS Models - built in thermostat keeps water in tank warm enough to bring up steam quickly			$262.00
iSpa Package (for use with iSteam controls) - Includes Aromasteam System, Chromasteam System, AudioWizard Sound System, Pair of Square Speakers			$2550.00
Spa Package (for use with iTempo/Plus controls) - Includes Aromasteam System, Chromasteam System, AudioWizard Sound System with independent controls, Pair of Speakers in Square or Round			$2662.00
Acrylic Shield (for use with all models - MS Super 4,5,6 require two)			$33.00
Aromasteam Steamhead in Chrome Already included with the Chrome iTempo and iTempo/Plus			$93.00
Aromasteam Steamhead in Designer Finishes Already included with the Designer iTempo and iTempo/Plus			$150.00
iSteam^® Touch Control Steam Head, in White or Black Already included with the iSteam control			$112.00
Remote Temperature Sensor (for mounting control outside steamroom - all models)			$139.00


MS Butler, iButler and iDream Packages Wholesale Pricing and Specifications Want all the Bells and Whistles in one package? Save $$$ on an MS Package!
For Models MS 90E to MS Super 3E
Butler Package 1 - Polished Chrome Includes iTempo/Plus Control (round or square), one Aromasteam Steamhead (round or square), one Autoflush, iGenie, one Drain Pan			$1275.00
Butler Package 1 - Designer Finish Choose either brushed nickel, polished nickel, oil rubbed bronze, brushed bronze, polished brass, or raw. Includes iTempo/Plus Control (round or square), one Aromasteam Steamhead (round or square), one Autoflush, iGenie, one Drain Pan			$1350.00
iButler Package 1 - White or Black Includes iSteam Touch Control, one Matching iSteam Steamhead, one Autoflush, iGenie, one Drain Pan			$1481.00
iDream Package 1 - White or Black Includes iSteam Touch Control, one Matching iSteam Steamhead, one Autoflush, iGenie, one Drain Pan, AromaSteam Oil Delivery System, Chromasteam Mood Lighting System, AudioWizard Sound System, Pair of Square Speakers			$4031.00
For Models Super 4E, 5E and 6E
Butler Package 2 - Polished Chrome Includes iTempo/Plus Control (round or square), two Aromasteam Steamheads (round or square), two Autoflushes, iGenie, two Drain Pans			$1725.00
Butler Package 2 - Designer Finish Choose either brushed nickel, polished nickel, oil rubbed bronze, brushed bronze, polished brass, or raw. Includes iTempo/Plus Control (round or square), two Aromasteam Steamheads (round or square), two Autoflushes, iGenie, two Drain Pans			$1837.00
iButler Package 2 - White or Black Includes iSteam Touch Control, two Matching iSteam Steamheads, two Autoflushes, iGenie, two Drain Pans			$1931.00
iDream Package 2 - White or Black Includes iSteam Touch Control, two Matching iSteam Steamheads, two Autoflushes, iGenie, two Drain Pans, AromaSteam Oil Delivery System, Chromasteam Mood Lighting System, AudioWizard Sound System, Pair of Square Speakers			$4593.00

Use our new Online Virtual Capacity Calculator
to determine the correct generator for your steamroom!

MS Series Steam Generators | CU Series Steam Generators
Steam@Home | Towel Warmers | CT Series Steam Generators

Mr. Steam Authorized Retailer

Prices above are in U.S. Dollars, FOB.
Please ask us about our cash discounts.

Orders are shipped via UPS.
All orders shipped to the lower 48 states presently
SHIP FREIGHT FREE!,
if a generator is included.

Shipping charges for small and foreign orders
are calculated per order, contact us for a Freight Quote.
